Modern sports floodlighting demands far more than achieving the required lux levels.
Today's lighting schemes must balance performance, visual comfort, optical precision and long-term flexibility while helping to reduce glare, spill light and visual intrusion. Whether illuminating a training ground, community sports facility or professional stadium, specifiers require lighting solutions capable of delivering consistent performance across a wide range of applications.

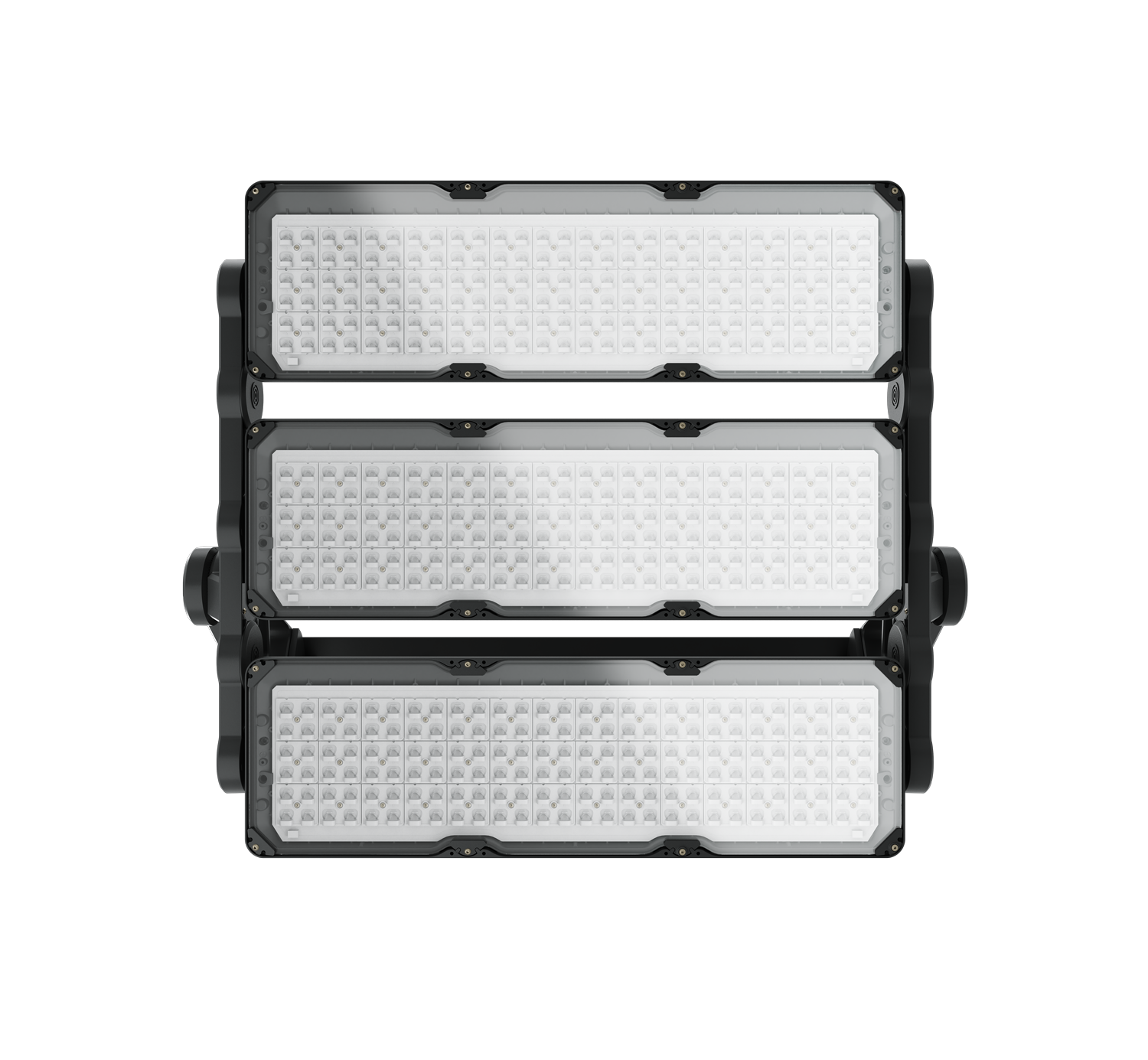

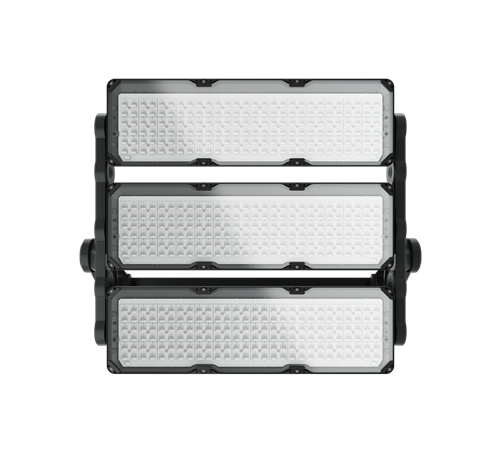

Developed to meet these demands, DYNAMIS is a premium modular LED floodlighting range available in both DYNAMIS Pro and DYNAMIS Eco variants. Combining precision optics, independently adjustable modules and flexible mounting arrangements, DYNAMIS gives lighting designers greater control over every installation.
Engineered around a modular platform, DYNAMIS delivers high-performance illumination while providing the flexibility required for modern sports and large-area lighting projects.
Why Modular Floodlighting Matters
Every sports lighting project presents different challenges. Mounting heights, playing surfaces, lighting classes and surrounding environments all influence how light should be distributed.
Rather than adopting a one-size-fits-all approach, DYNAMIS has been developed around a modular platform. Available in both two and three-module configurations, the range gives specifiers greater flexibility to match performance to the requirements of each individual project.
Combined with Pro and Eco variants, DYNAMIS allows designers to balance performance, installation requirements and project budgets without compromising lighting quality.
Precision Optical Performance
Delivering the right amount of light is only part of modern sports lighting design. Controlling exactly where that light is distributed is equally important.
DYNAMIS features independently configurable optical modules with Narrow Flood and Wide Flood optic options, allowing lighting schemes to be tailored to the application. This helps improve uniformity across the playing surface while reducing glare, spill light and unnecessary light beyond the intended area.
For consultants and lighting designers, this provides greater confidence when specifying installations that require precise, predictable optical performance.
Designed for Accurate Aiming
DYNAMIS has been engineered to provide exceptional aiming flexibility both during installation and throughout the life of the project.
Independently adjustable LED modules allow each luminaire to be accurately aligned, while articulated brackets support both overslung and underslung mounting arrangements. This flexibility helps simplify commissioning and enables lighting designers to optimise beam direction for improved uniformity and visual comfort.
Intelligent Control Options
Lighting requirements often change throughout the day, from training sessions and maintenance activities to competitive fixtures and televised events.
DYNAMIS supports a comprehensive range of control options including DALI-2, DMX-RDM and optional Zhaga expansion. Combined with programmable drivers and smooth dimming from 0.4% to 100%, the range enables facilities to optimise energy consumption while maintaining the required lighting performance.
Designed for long-term reliability, DYNAMIS combines high-pressure die-cast aluminium construction with a marine-grade coating, IP66 ingress protection and IK08 impact resistance.
With outputs of up to 260,184 luminaire lumens, efficacy up to 166 lm/W and flicker-free performance suitable for TV broadcast applications, DYNAMIS delivers the performance required across modern sports lighting installations.
Key Features
- Available in DYNAMIS Pro and DYNAMIS Eco
- Modular two and three-module configurations
- Precision optical distributions
- Independently adjustable LED modules
- Overslung and underslung mounting options
- Up to 260,184 luminaire lumens
- Up to 166 lm/W efficacy
- TV broadcast-ready, flicker-free performance
- DALI-2, DMX-RDM and Zhaga compatibility
- Optional cut-off visors and rear light shields
- IP66 / IK08 protection
Looking to Specify Sports Floodlighting?
Whether you're designing a community sports facility, training ground or professional stadium, DYNAMIS provides the flexibility, optical precision and performance required for today's sports lighting projects.
Explore the DYNAMIS range or speak to our team about specifying the right solution for your next project.
